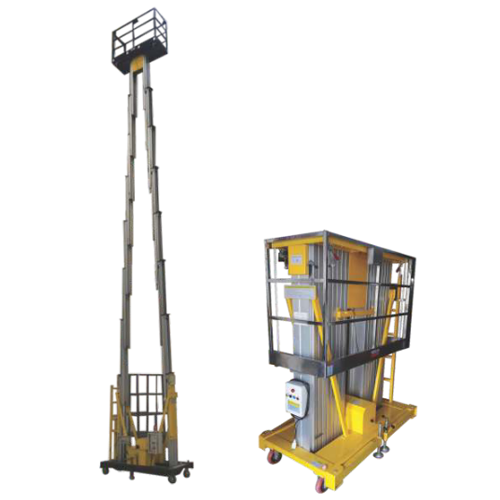

| Aerial Work Platform | ITEM CODE: DE-176 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Aerial Work Platform Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Model | DE600-1 | DE800-1 | DE900-1 | DE1000-1 | |
| Lift capacity | 200kg | 200kg | 200kg | 200kg | |
| Platform occupancy max | 1 | 1 | 1 | 1 | |
| Working height max | 8.00m | 9.00m | 10.00m | 12.00m | |
| Platform height max | 6.00m | 8.00m | 9.00m | 10.00m | |
| Stowed length | 1.34m | 1.34m | 1.44m | 1.45m | |
| Stowed width | 0.85m | 0.85m | 0.85m | 0.85m | |
| Stowed height | 2.00m | 2.00m | 2.00m | 2.00m | |
| Platform size | 0.60*0.55m | 0.60*0.55m | 0.60*0.55m | 0.60*0.55m | |
| Outrigger Footprint | 1.7*1.67m | 1.7*1.67m | 1.93*1.77m | 1.93*1.77m | |
| Ground clearance | 0.05m | 0.05m | 0.05m | 0.05m | |
| Lifting motor (AC) | 0.75kw | 0.75kw | 0.75kw | 1.1kw | |
| Weight (AC) | 325kg | 378kg | 400kg | 430kg | |
| Optional Configurations | Power source | 24V/80Ah | 24V/80Ah | 24V/80Ah | 24V/80Ah |
| Lifting motor (DC | 0.80kw | 0.80kw | 0.80kw | 0.80kw | |
| Charger | 24V/12A | 24V/12A | 24V/12A | 24V/12A | |
