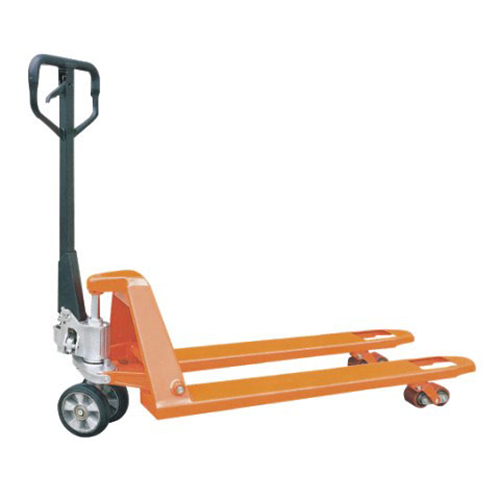

| HYDRAULIC HAND PALLET TRUCK (Capacity:2500kg) | ITEM CODE: DE - 101 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of HYDRAULIC HAND PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Length of fork | 1150 mm |
| Width of Fork | 550 mm |
| Minimum Height | 90 mm |
| Maximum Height | 200 mm |
| Wheels | 2 nos. 200 X 50 mm & 4 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Structure | Fork made from Heavy duty M.S. Sheet & C.I. Bracket suitable for Roller wheels. |
| Hydraulic Unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Handle | Designed For Best Maneuverability & Made Of M.S pipe handle at rear end. …….. |
| Capacity | 2.5 Ton |
| Size | 1150 L X 550 w mm / 1220 L X 685 w mm / 1500 L X 550 w mm |
| HEAVY DUTY HYDRAULIC HAND PALLET TRUCK (Capacity:3500kg/5000kg) | ITEM CODE: DE - 102 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of HEAVY DUTY HYDRAULIC HAND PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Length of fork | 1150 mm |
| Width of Fork | 550 mm |
| Minimum Height | 90 mm |
| Maximum Height | 200 mm |
| Wheels | 2 nos. 200 X 50 mm & 4 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Structure | Fork made from Heavy duty Channel Body & C.I. Bracket suitable for Roller wheels. |
| Hydraulic Unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Handle | Designed For Best Maneuverability & Made Of M.S pipe handle at rear end. ............ |
| Capacity | 2.5 Ton / 3.5 Ton / 5 Ton |
| Size | 1150 L X 550 w mm / 1220 L X 685 w mm / 1500 L X 550 w mm / 2400 L X 600 w mm |

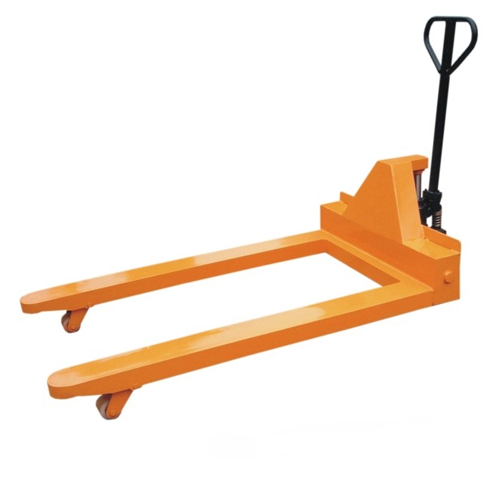

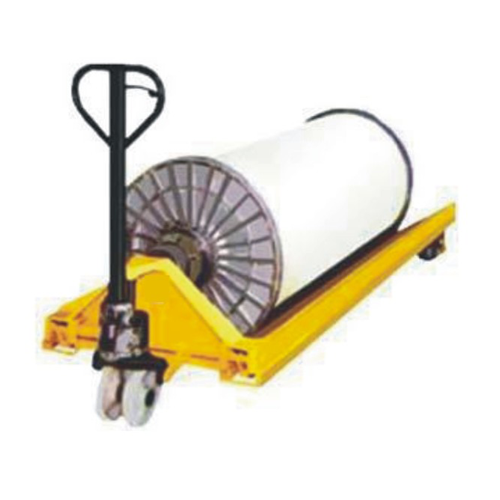

| HYDRAULIC BEAM PALLET TRUCK (capacity:1000kgs/3000kgs) | ITEM CODE: DE - 103 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of HYDRAULIC BEAM PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Length of fork | 1150 mm |
| Overall width | 830 mm. The inside edge will specially made tapered |
| Lowered Ht | 90 mm |
| Raiased Ht | 200 mm |
| Wheels | 2 nos. 200 X 50 mm & 4 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Structure | Fork made from Heavy duty M.S. Sheet & C.I. Bracket suitable for Roller wheels |
| Hydraulic Unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Capacity | 2.5 Ton |
| Size | 1150 X 830 mm (For reel dia - 600 to 800 mm ) 1150 X 900 mm (For reel dia - 800 to 1000 mm ) 1200 X 970 mm (For reel dia - 1000 to 1200 mm ) 1200 X 1030 mm (For reel dia - 1200 to 1400 mm ) 2400 X 970 mm (For reel dia - 1000 to 1200 mm ) |

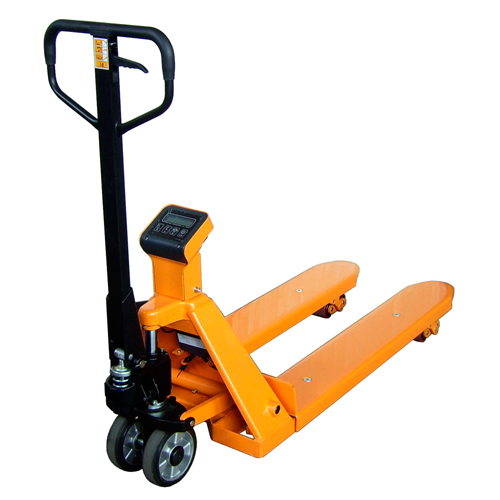

| WEIGHING SCALE PALLET TRUCK (Capacity:1500kgs/2000kgs) | ITEM CODE: DE - 104 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of WEIGHING SCALE PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Length of fork | 1150 mm |
| Width of Fork | 550 mm |
| Minimum Height | 90 mm |
| Maximum Height | 200 mm |
| Wheels | 2 nos. 200 X 50 mm & 4 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Structure | Fork made from Heavy duty M.S. Sheet & C.I. Bracket suitable for Roller wheels. |
| Hydraulic Unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Handle | Designed For Best Maneuverability & Made Of M.S pipe handle at rear end. ............ |
| Scale | Measure weight in pounds or kilograms Measure in 1 kg step Tolerance: +/- 200/500 grams Powered by 4 X 1.5 VAA Battery Keypad and automatic tare functions. |

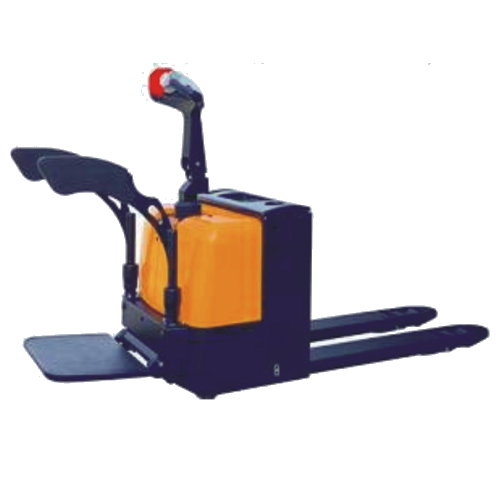

| BATTERY PALLET TRUCK (Capacity:1500kgs/2000kgs) | ITEM CODE: DE - 105 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of BATTERY PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Fork Length | 1150 mm. |
| Overall length | 1740 mm |
| Overall Fork Width | 520 mm. |
| Width between 2 fork | 200 mm. |
| Power Unit length | 610 mm |
| Width of Power Unit | 850 mm |
| Overall Height | 783 mm |
| Height of lift | 200 mm |
| Width of fork | 160 mm. |
| Lifting Speed | i) Laden – 2.5 Sec. ii) Unladen – 2.0 Sec |
| Travel Speed | i) Laden – 5.5 Km/hr ii) Unladen -- 7.5 Km/hr |
| Lowering Speed | i) Laden – 2.0 Sec. ii) Unladen – 2.5 Sec. |
| Wheels | 1 nos. drive (steering) Polymers Wheel having size 230 X 75 mm & 4 nos. 75 mm dia x 70 mm Length load roller wheels. |
| Hydraulic unit | Two stage resistance controlled traction speed by finger controlled push buttons which operated 24V heavy duty switches. Separate push button control for hyd. Motor. 2kW 24V DC Electro-hydraulic compact power pack.Truck driven by 1.2 kw, 24V D.C.motor. |
| Traction Battery | 24V, 240 Ah / 330 Ah , 5 Hrs rating |
| Battery Charger | 24V, 30 Amp. Capacity with automatic cut-off with battery and battery charger |

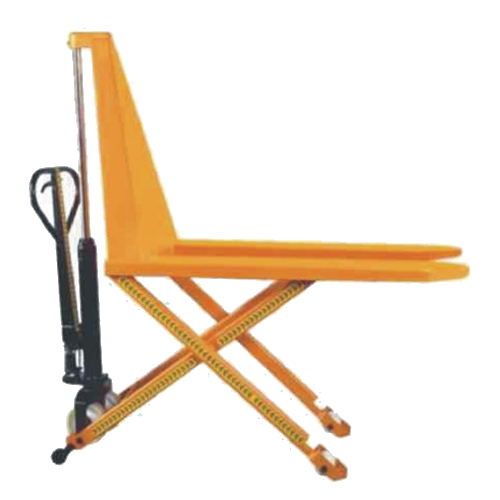

| HIGH LIFT HAND PALLET TRUCK (Capacity:800kgs/1000kgs) | ITEM CODE: DE - 106 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of HIGH LIFT HAND PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Lifting Capacity | 800 / 1000 Kgs. |
| OverallFork Width | 560 mm |
| Fork Length | 1150 mm. |
| Fork Width | 160 mm |
| Closed Height | 90 mm |
| Erected Height | 800 mm |
| Wheels | 2 nos. 200 X 50 mm & 2 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Structure | Fork made from Heavy duty M.S. Sheet with 2 nos. scissor type heavy duty M.S. Square Pipe supports |
| Hyd. unit | 1 no. hyd. pump with hard chrome plated piston & inclined long cylinder with leak proof viper seals will be given to protect from ingress dirt & dust. |
| Lifting Height | 800 / 1000 mm |

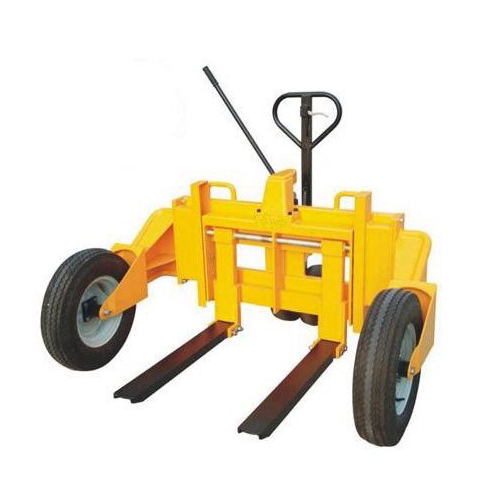

| ROUGH TERRAIN PALLET TRUCK (Capacity:1000kgs/2000kgs) | ITEM CODE: DE - 107 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of ROUGH TERRAIN PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Size | 1150 X 540 mm |
| Min. Ht. | 90 mm |
| Lift Ht. | 200 mm |
| Driving Speed | 4.8 Km/h without Load 4.3 Km/h With Load |
| One Charging Circle | 130 mins no-stop running (1500 kg weight pallet) |
| Litiume Battery | 3.5 h Fast Charge Maintenance Free No Memory Effect (no need full charging) Optional Additional Battery Pack Time of changing battery 10s |
| Manual Lifting | Optional quick lifting pump |
| Compact Body Design | Only 25mm longer than Hand Pallet Truck |
| CAPACITY | 1.5 ton |

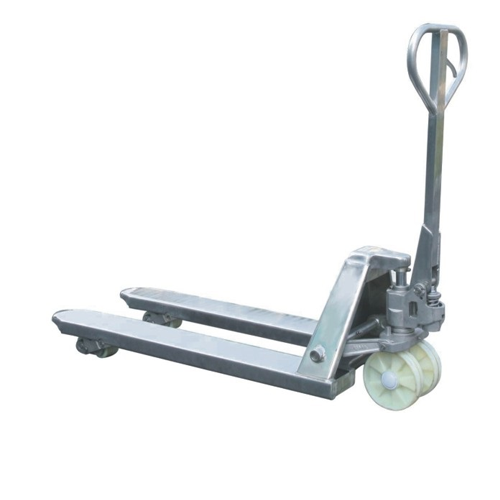

| S.S HAND PALLET TRUCK (Capacity:2000kgs/2500kgs) | ITEM CODE: DE - 108 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of S.S HAND PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Length of fork | 1150 mm |
| Width of Fork | 550 mm |
| Minimum Height | 90 mm |
| Maximum Height | 200 mm |
| Wheels | 2 nos. 200 X 50 mm & 4 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Structure | Fork made from Heavy duty S.S. 304 Sheet & C.I. Bracket suitable for Roller wheels |
| Hydraulic Unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Handle | Designed For Best Maneuverability & Made Of S.S. 304 pipe handle at rear end. ............ |
| Capacity | 2.5 Ton |
| Size | 1150 L X 550 w mm / 1220 L X 685 w mm |

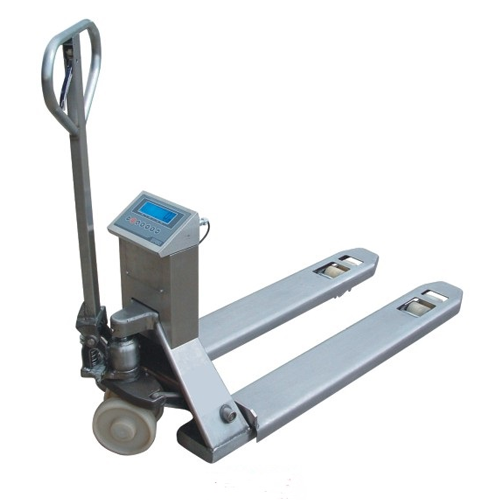

| S.S. WEIGHING SCALE PALLET TRUCK (Capacity:2000kgs) | ITEM CODE: DE - 109 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of S.S. WEIGHING SCALE PALLET TRUCK Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Length of fork | 1150 mm |
| Width of Fork | 550 mm |
| Minimum Height | 90 mm |
| Maximum Height | 200 mm |
| Wheels | 2 nos. 200 X 50 mm & 4 nos. 75 mm dia X 70 mm Heavy duty pu wheels with double ball bearing |
| Structure | Fork made from Heavy duty S.S. 304 Sheet & S.S 304. Bracket suitable for Roller wheels. All Structure made from S.S 304 Material. |
| Hydraulic Unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Handle | Designed For Best Maneuverability & Made Of S.S. 304 pipe handle at rear end ............ |
| Scale | Measure weight in pounds or kilograms Measure in 1 kg step Tolerance: +/- 200/500 grams Powered by 4 X 1.5 VAA Battery Keypad and automatic tare functions. |
| Capacity | 2 Ton |
| Size | 1150 L X 550 w mm / 1220 L X 685 w mm |

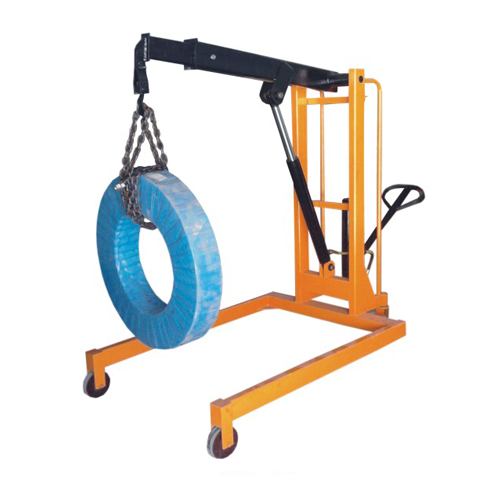

| MOBILE FLOOR CRANE (Capacity:1000kgs/2000kgs) | ITEM CODE: DE - 110 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of MOBILE FLOOR CRANE Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Min. Ht. of Boom | 500 mm |
| Max. Ht. Of boom | 2400 mm (8’ ft) |
| Boom position | Inner - 1000 kgs |
| Structure | Base legs structure made from 100 X 50 mm M.S. Square Pipe & vertical Boom Structure made from 100 x 100 mm M.S. Square Pipe And Lifting Hook Boom made from 100 mm x 100 mm M.S. Square Pipe with 1 no. "C" type lifting hook. |
| Hydraulic unit | Hand operated hyd. Pump & inclined pump cylinder having piston duly hard chrome plated. |
| Wheels | 2 Nos. 8" x 2" White Nylon wheels with double ball bearing for easy movement and 2 Nos. 8" x 2" Red polymer wheels for legs |

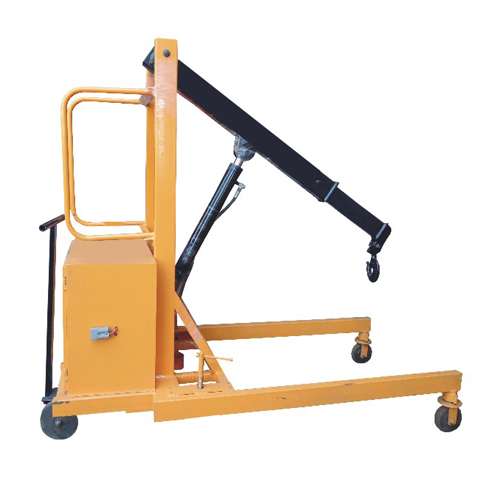

| ELECTRIC FLOOR CRANE (Capacity:1000kgs/5000kgs) | ITEM CODE: DE - 111 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of ELECTRIC FLOOR CRANE Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Min. Ht. of Boom | 500 mm |
| Max. Ht. Of boom | 2400 mm (8’ ft) |
| Boom position | Inner - 1000 kgs |
| Structure | Base legs structure made from 100 X 50 mm M.S. Square Pipe & vertical Boom Structure made from 100 x 100 mm M.S. Square Pipe And Lifting Hook Boom made from 100 mm x 100 mm M.S. Square Pipe with 1 no. "C" type lifting hook. |
| Hydraulic unit | Electro hydro push button control & continuous running power pack unit having 3.0 HP motor, starter with 3 mtr long cable. An inclined cylinder having hard chrome plated piston. |
| Wheels | 2 Nos. 8" x 2" White Nylon wheels with double ball bearing for easy movement and 2 Nos. 8" x 2" Red polymer wheels for legs |

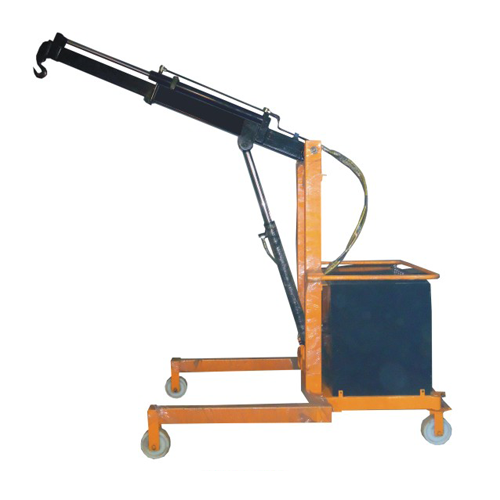

| BATTERY OPERATED FLOOR CRANE (Capacity:1000kgs/5000kgs) | ITEM CODE: D E - 112 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of BATTERY OPERATED FLOOR CRANE Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Min. Ht. of Boom | 500 mm |
| Max. Ht. Of boom | 2400 mm (8’ ft) |
| Boom position | Inner - 1000 kgs |
| Structure | Base legs structure made from 100 X 50 mm M.S. Square Pipe & vertical Boom Structure made from 100 x 100 mm M.S. Square Pipe And Lifting Hook Boom made from 100 mm x 100 mm M.S. Square Pipe with 1 no. "C" type lifting hook. |
| Hydraulic unit | Electro hydro push button control & continuous running power pack unit having DC motor with 12 volt Battery supply and single phase Charger for Battery. An inclined cylinder having hard chrome plated piston with limit switch. |
| Wheels | 2 Nos. 8" x 2" White Nylon wheels with double ball bearing for easy movement and 2 Nos. 8" x 2" Red polymer wheels for legs |
